    • 产品特点

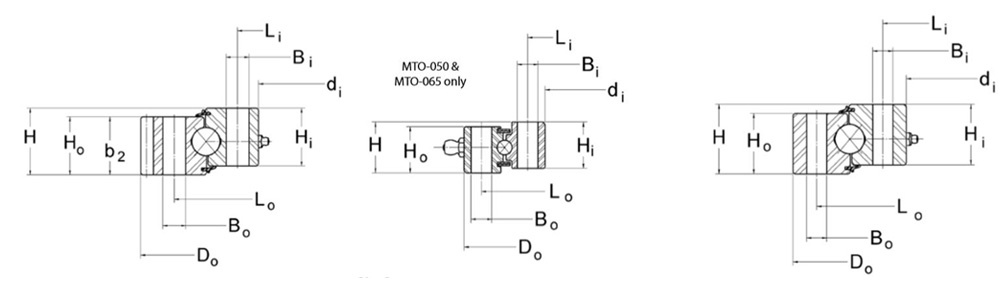

    • 结构图
    • 规格
    MT系列回转支承轴承具有矩形截面，尺寸范围为4-47英寸(100-1200毫米)。 轴承内部结构包括深沟滚道和最大尺寸的滚珠。这种结构使该系列能够承受比一般四点接触球轴承更高的力矩、推力和径向负载。轴承凹槽上有更大尺寸的完美密封和非接触式防尘盖,对阻挡污染物有一定作用。这种设计使该系列产品在从轻载到重载的许多应用环境中都有良好的表现。 MT系列轴承可提供无齿型MTO和外齿型MTE。该列MTE324以下采用双渐开线短齿齿轮,更大的型号采用渐开线短齿齿轮。 型号末尾带有“T”后缀的,带有螺纹安装孔。螺纹深度至少是名义孔径的1.5倍。 型号末尾带有“X”后缀的，具有更强的承载能力。
    轴承型号 外型尺寸 安装孔尺寸 额定力矩 重量
    外圈 内圈 Weight
    Do di H Hi/Ho Lo Bo QTY Li Bi QTY ft-lbs kg
    MTO-050 110.0074 49.9872 19.9898 18.4912 96.9772 6.6 8 62.992 6.6 8 675 0.907184
    MTO-050T 110.0074 49.9872 19.9898 18.4912 96.9772 M6 8 62.992 M6 8 675 0.907184
    MTO-065 135.001 64.9986 21.9964 19.9898 119.9896 9 8 79.9846 9 8 1075 1.814368
    MTO-065T 135.001 64.9986 21.9964 19.9898 119.9896 M8 8 79.9846 M8 8 1075 1.814368
    MTO-122 226.0092 121.9962 34.0106 29.0068 208.0006 9 12 140.0048 9 12 5020 5.896696
    MTO-122T 226.0092 121.9962 34.0106 29.0068 208.0006 M8 12 140.0048 M8 12 5020 5.896696
    MTO-143 248.9962 143.002 34.0106 29.0068 226.9998 11 12 164.9984 11 12 8950 6.80388
    MTO-143T 248.9962 143.002 34.0106 29.0068 226.9998 M10 12 164.9984 M10 12 8950 6.80388
    MTO-145 299.9994 145.0086 49.9872 43.9928 270.002 14 16 175.006 14 16 26000 16.782904
    MTO-145T 299.9994 145.0086 49.9872 43.9928 270.002 5/8-11 16 175.006 5/8-11 16 26000 16.782904
    MTO-145X 312.0644 145.0086 49.9872 43.9928 270.002 15 16 175.006 15 16 30600 18.597272
    MTO-145XT 312.0644 145.0086 49.9872 43.9928 270.002 9/16-12 UNC 16 175.006 9/16-12 UNC 16 30600 18.597272
    MTO-170 310.007 170.0022 45.9994 40.9956 280.0096 13 12 199.9996 13 12 16520 14.968536
    MTO-170T 310.007 170.0022 45.9994 40.9956 280.0096 M12 12 199.9996 M12 12 16520 14.968536
    MTO-210 364.998 210.0072 40.005 37.9984 335.026 14 16 240.0046 14 20 44500 17.236496
    MTO-210T 364.998 210.0072 40.005 37.9984 335.026 5/8-11 16 240.0046 5/8-11 20 44500 17.236496
    MTO-210X 373.0244 210.0072 49.9872 43.9928 335.026 15 16 240.0046 15 20 52100 21.772416
    MTO-210XT 373.0244 210.0072 49.9872 43.9928 335.026 9/16-12 UNC 16 240.0046 9/16-12 UNC 20 52100 21.772416
    MTO-265 419.989 264.9982 49.9872 43.9928 389.9916 14 18 294.9956 14 24 62000 24.493968
    MTO-265T 419.989 264.9982 49.9872 43.9928 389.9916 5/8-11 18 294.9956 5/8-11 24 62000 24.493968
    MTO-265X 433.9844 264.9982 49.9872 43.9928 389.9916 15 18 294.9956 15 24 71900 27.669112
    MTO-265XT 433.9844 264.9982 49.9872 43.9928 389.9916 9/16-12 UNC 18 294.9956 9/16-12 UNC 24 71900 27.669112
    MTO-324T 520.3444 323.85 52.3748 51.3588 479.425 5/8-11 20 365.125 5/8-11 20 102400 47.62716
    MTO-324X 520.3444 324.358 60.325 52.4002 479.425 17.5 20 365.125 17.5 20 102400 47.62716
    MTO-415 626.11 412.75 60.325 52.4002 565.15 20.7 16 450.85 20.7 20 159000 65.77084
    MTO-415T 626.11 412.75 60.325 52.4002 565.15 3/4-10 UNC 16 450.85 3/4-10 UNC 20 159000 65.77084
    MTO-470 683.26 469.9 60.325 52.4002 622.3 20.7 18 508 20.7 24 188000 70.30676
    MTO-470T 683.26 469.9 60.325 52.4002 622.3 3/4-10 UNC 18 508 3/4-10 UNC 24 188000 70.30676
    MTO-540 753.11 539.75 60.325 52.4002 692.15 20.7 24 577.85 20.7 28 232000 81.64656
    MTO-540T 753.11 539.75 60.325 52.4002 692.15 3/4-10 UNC 24 577.85 3/4-10 UNC 28 232000 81.64656
    MTO-590 851.7636 587.375 73.025 65.1002 777.875 24 18 631.825 24 24 338000 138.34556
    MTO-590T 851.7636 587.375 73.025 65.1002 777.875 7/8-9 UNC 18 631.825 7/8-9 UNC 24 338000 138.34556
    MTO-705 970.3054 704.85 73.025 65.1002 895.35 24 24 749.3 24 28.28 443000 158.7572
    MTO-705T 970.3054 704.85 73.025 65.1002 895.35 7/8-9 UNC 24 749.3 7/8-9 UNC 28 443000 158.7572
    MTO-730 1062.99 730.25 82.55 73.152 965.2 27 20 787.4 27 24 587000 240.40376
    MTO-730T 1062.99 730.25 82.55 73.152 965.2 1-8 UNC 20 787.4 1-8 UNC 24 587000 240.40376
    MTO-870 1205.0776 869.95 107.95 98.425 1114.425 30 24 920.75 30 28 873000 378.74932
    MTO-870T 1205.0776 869.95 107.95 98.425 1114.425 11-8 UNC 24 920.75 11-8 UNC 28 873000 378.74932
    MTE-145 312.0644 43.9928 0.562 270.002 16 175.006 0.562 16 FS 12 5/7 17.236496
    MTE-145T 312.0644 43.9928 5/8-11 270.002 16 175.006 5/8-11 16 FS 12 5/7 17.236496
    MTE-145X 312.0644 43.9928 0.594 270.002 16 175.006 0.594 16 FS 12 5/7 17.236496
    MTE-210 373.0244 37.9984 0.562 335.026 16 240.0046 0.562 20 FS 14.4 5/7 17.236496
    MTE-210T 373.0244 37.9984 5/8-11 335.026 16 240.0046 5/8-11 20 FS 14.4 5/7 17.236496
    MTE-210X 373.0244 43.9928 0.594 335.026 16 240.0046 0.594 20 FS 14.4 5/7 19.958048
    MTE-265 433.9844 43.9928 0.562 389.9916 18 294.9956 0.562 24 FS 16.8 5/7 25.854744
    MTE-265T 433.9844 43.9928 5/8-11 389.9916 18 294.9956 5/8-11 24 FS 16.8 5/7 25.854744
    MTE-265X 433.9844 43.9928 0.594 389.9916 18 295.2496 0.594 24 FS 16.8 5/7 25.854744
    MTE-324T 520.3444 51.3588 5/8-11 479.425 20 365.125 5/8-11 20 FS 20.2 5/7 44.452016
    MTE-324X 520.3444 52.4002 0.688 479.425 20 365.125 0.688 20 FS 20.2 5/7 44.905608
    MTE-415 626.11 52.4002 0.813 565.15 16 450.85 0.813 20 SD 24.25 4 59.874144
    MTE-415T 626.11 52.4002 3/4-10 565.15 16 450.85 3/4-10 20 SD 24.25 4 59.874144
    MTE-470 683.26 52.4002 0.813 622.3 18 508 0.813 24 SD 26.5 4 66.678024
    MTE-470T 683.26 52.4002 3/4-10 622.3 18 508 3/4-10 24 SD 26.5 4 66.678024
    MTE-540 753.11 52.4002 0.813 692.15 24 577.85 0.813 28 SD 29.25 4 73.935496
    MTE-540T 753.11 52.4002 3/4-10 692.15 24 577.85 3/4-10 28 SD 29.25 4 73.935496
    MTE-590 851.7636 65.1002 0.938 777.875 18 631.825 0.938 24 SD 33 3 128.366536
    MTE-590T 851.7636 65.1002 7/8-9 777.875 18 631.825 7/8-9 24 SD 33 3 128.366536
    MTE-705 970.3054 65.1002 0.938 895.35 24 749.3 0.938 28 SD 37.667 3 147.4174
    MTE-705T 970.3054 65.1002 7/8-9 895.35 24 749.3 7/8-9 28 SD 37.667 3 147.4174
    MTE-730 1062.99 73.152 1.063 965.2 20 787.4 1.063 24 SD 41.2 2.5 222.713672
    MTE-730T 1062.99 73.152 1-8 965.2 20 787.4 1-8 24 SD 41.2 2.5 222.713672
    MTE-870 1205.0776 98.425 1.188 1114.425 24 920.75 1.188 28 SD 46.8 2.5 349.719432
    MTE-870T 1205.0776 98.425 11/8-7 1114.425 24 920.75 11/8-7 28 SD 46.8 2.5 349.719432
