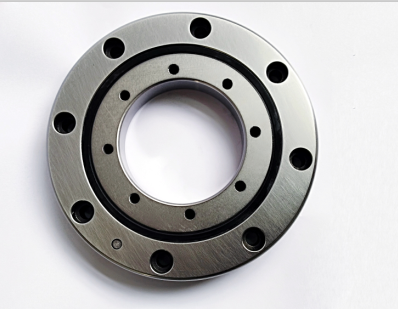

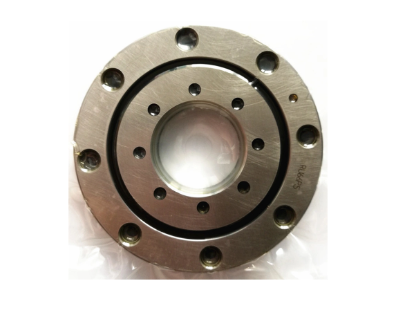

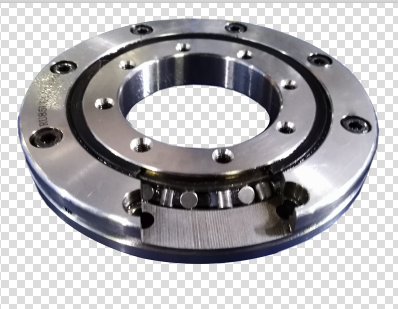

    CRBE 系列: 带法兰孔高钢性，由带有法兰孔的一个内环和一个外环组成，因为已有法兰孔，可以直接安装使用，适用于内环或者外环旋转。
    型号 尺寸 (mm) 安装孔尺寸 (mm) 基本额定载荷 (kN) 靠肩尺寸(mm)
    内径 (d) 外径 (D) 宽度
    (B, T)    		 倒角
    (r min)    		 油孔
    d OH    		 内圈 外圈 动载荷, C 静载荷 C0    da        Da
    PCD1 安装孔  PCD2 安装孔
    CRBE 02012 A 20 70 12 0.6 3 28 6-M3 through 57 6-ø3.4 throughø6.5 counter bore depth 3.3 8.26 9.16 35 47
    CRBE 03515 A 35 95 15 0.6 3 45 8-M4 through 83 8-ø4.5 through ø8 counter bore depth 4.4 18.9 23.4 57 73
    CRBE 05515 A 55 120 15 0.6 3 65 8-M5 through 105 8-ø5.5 through ø9.5 counter bore depth 5.4 21.7 30.6 77 92
    CRBE 08022 A 80 165 22 1 3 97 10-M5 through 148 10-ø5.5 through ø9.5 counter bore depth 5.4 40.4 63.6 117 132
    CRBE 08022 B 80 165 22 1 3 97 10-ø5.5 throughø9.5 counter bore depth 5.4 148 10-ø5.5 through ø9.5 counter bore depth 5.4 40.4 63.6 117 132
    CRBE 08022 C 80 165 22 1 3 97 10-ø5.5 throughø9.5 counter bore depth 5.4 97 10-ø5.5 through ø9.5 counter bore depth 5.4 40.4 63.6 117 132
    CRBE 09025 A 90 210 25 1.5 3 112 12-M8 through 187 12-ø9 through ø14 counter bore depth 8.6 46 80.2 139 157
    CRBE 09025 B 90 210 25 1.5 3 112 12-ø9 through ø14 counter bore depth 8.6 187 12-ø9 through ø14 counter bore depth 8.6 46 80.2 139 157
    CRBE 09025 C 90 210 25 1.5 3 112 12-ø9 through ø14 counter bore depth 8.6 187 12-ø9 through ø14 counter bore depth 8.6 46 80.2 139 157
    CRBE 11528 A 115 240 28 1.5 3 139 12-M8 through 217 12-ø9 through ø14 counter bore depth 8.6 73.1 131.9 168 188
    CRBE 11528 B 115 240 28 1.5 3 139 12-ø9 through ø14 counter bore depth 8.6 217 12-ø9 through ø14 counter bore depth 8.6 73.1 131.9 168 188
    CRBE 11528 C 115 240 28 1.5 3 139 12-ø9 through ø14 counter bore depth 8.6 217 12-ø9 through ø14 counter bore depth 8.6 73.1 131.9 168 188
    CRBE 16035 A 160 295 35 2 6 184 12-M10 through 270 12-ø11 through ø17.5 counter bore depth 10.8 102 192.3 218 238
    CRBE 16035 B 160 295 35 2 6 184 12-ø11 through ø17.5 counter bore depth 10.8 270 12-ø11 through ø17.5 counter bore depth 10.8 102 192.3 218 238
    CRBE 16035 C 160 295 35 2 6 184 12-ø11 through ø17.5 counter bore depth 10.8 270 12-ø11 through ø17.5 counter bore depth 10.8 102 192.3 218 238
    CRBE 21040 A 210 380 40 2.5 6 240 16-M12 through 350 16-ø14 through ø20 counter bore depth 13 142 286.2 277 299
    CRBE 21040 B 210 295 35 2 6 240 16-ø14 through ø20 counter bore depth 13 350 16-ø14 through ø20 counter bore depth 13 142 286.2 277 299
    CRBE 21040 C 210 295 35 2 6 240 16-ø14 through ø20 counter bore depth 13 350 16-ø14 through ø20 counter bore depth 13 142 286.2 277 299
